Description

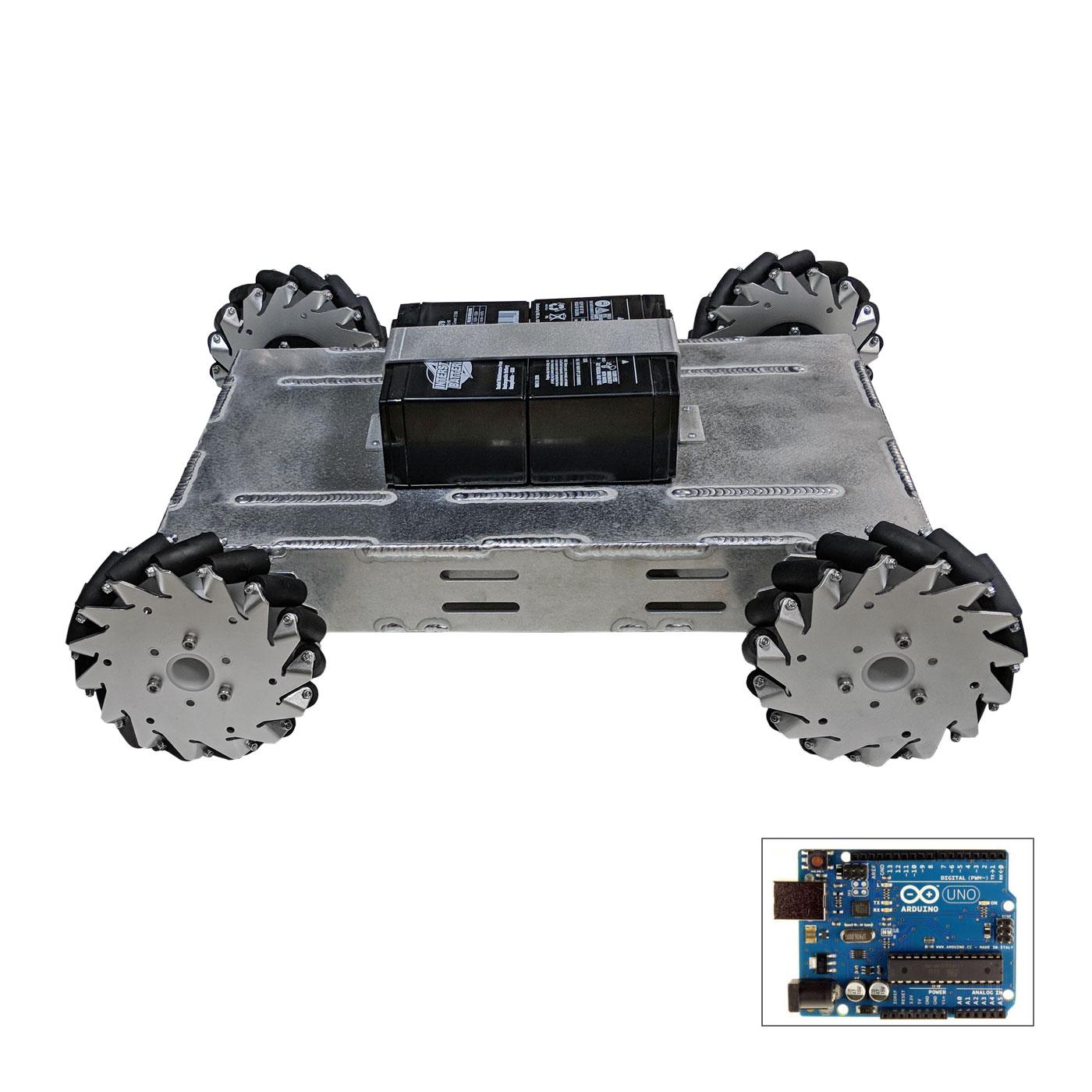

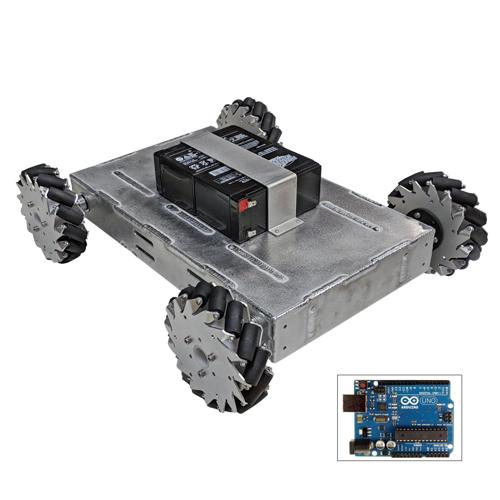

- This Programmable Mecanum Wheel Vectoring Robot platform is designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots.
- Certainly this robot kit includes the CNC cut 4WD base intended for our IG42 gear motors and Nexus Mecanum wheels or omni directional wheels.
- The chassis is a rigid gusseted aluminum frame (1/8″) that is precisely fabricated using state of the art CNC equipment.
- Accordingly each wheel is supported by two flanged, double-sealed ball bearing for extra support and chain driven.
- It is designed for any of our planetary IG42 gear motors with or without encoders.
- Initially this platform is also specifically designed for chain driving with Nexus mecanum wheels and hubs (listed in the options below).
- Afterwards this Configurable – Programmable Mecanum Wheel Vectoring Robot is a vectoring version of the IG42 DB Heavy Duty ATR.
- See our vectoring robot page for more details about our All Terrain Robots.
- Also If you need this Programmable robot customized beyond the provided options below, Contact us.
- This is a configurable robot kit with selectable options.
- The options are pre-selected to reflect our recommended configuration but can be changed to suit your needs.
- Basically this kit is perfect for creation of an Autonomous robot.
- We offer a wide variety of sensors to develop autonomy.
- Afterwards it also offers a RC override option so you can control the Configurable – Programmable Mecanum Wheel Vectoring Robot with a remote controller.
- Dimensions (LxWxH): 21.6″ x 17.8″ x 6.0″
- Weight: 40 pounds
- Axle Mount: Dual Bearing (DB) – Axles are mounted on two ball sealed ball bearings.
- Drive Method: Chain drive with a 10:15 reduction (gear motors to drive wheels).
- Payload : With default selected options: 90 pounds
- Speed: With default selected options: 130 feet per minute (1.5 mph)
Standard Configuration
- The standard configuration loadout comes unassembled.
- Includes the chassis, hardware, and wiring kits.
- Gear Motors: Four (4) 122 RPM gear motors (one per axle/wheel).
- Wheels: One (1) Set of 6 inch Mecanum Wheels and shafts.
- Battery System: Two (2) Interstate 12V 8 Ah Lead Acid Battery providing 2-5 hours of operation depending on use.s
