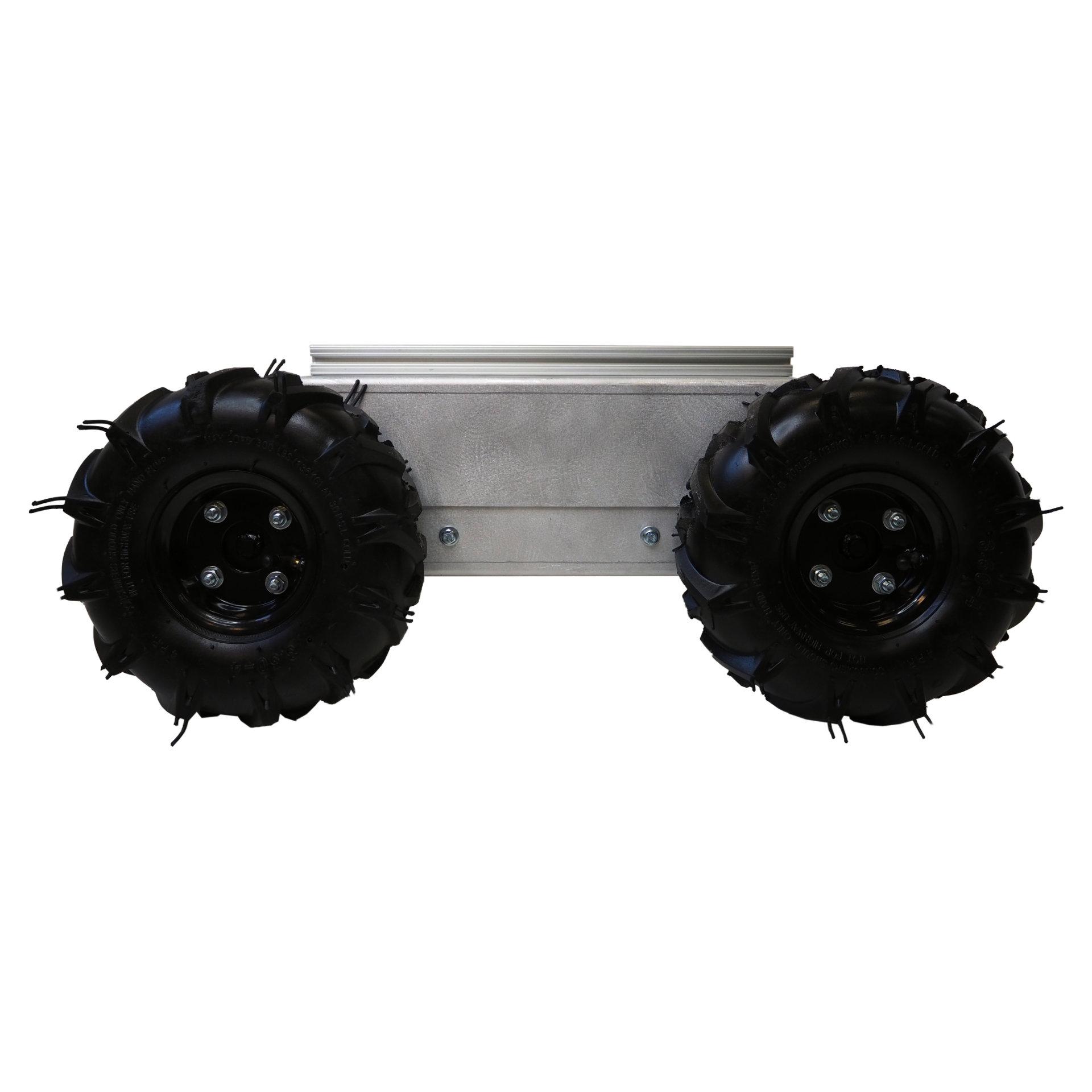

Configurable - IG42-SB4-T, Custom Size 4WD All Terrain Robot

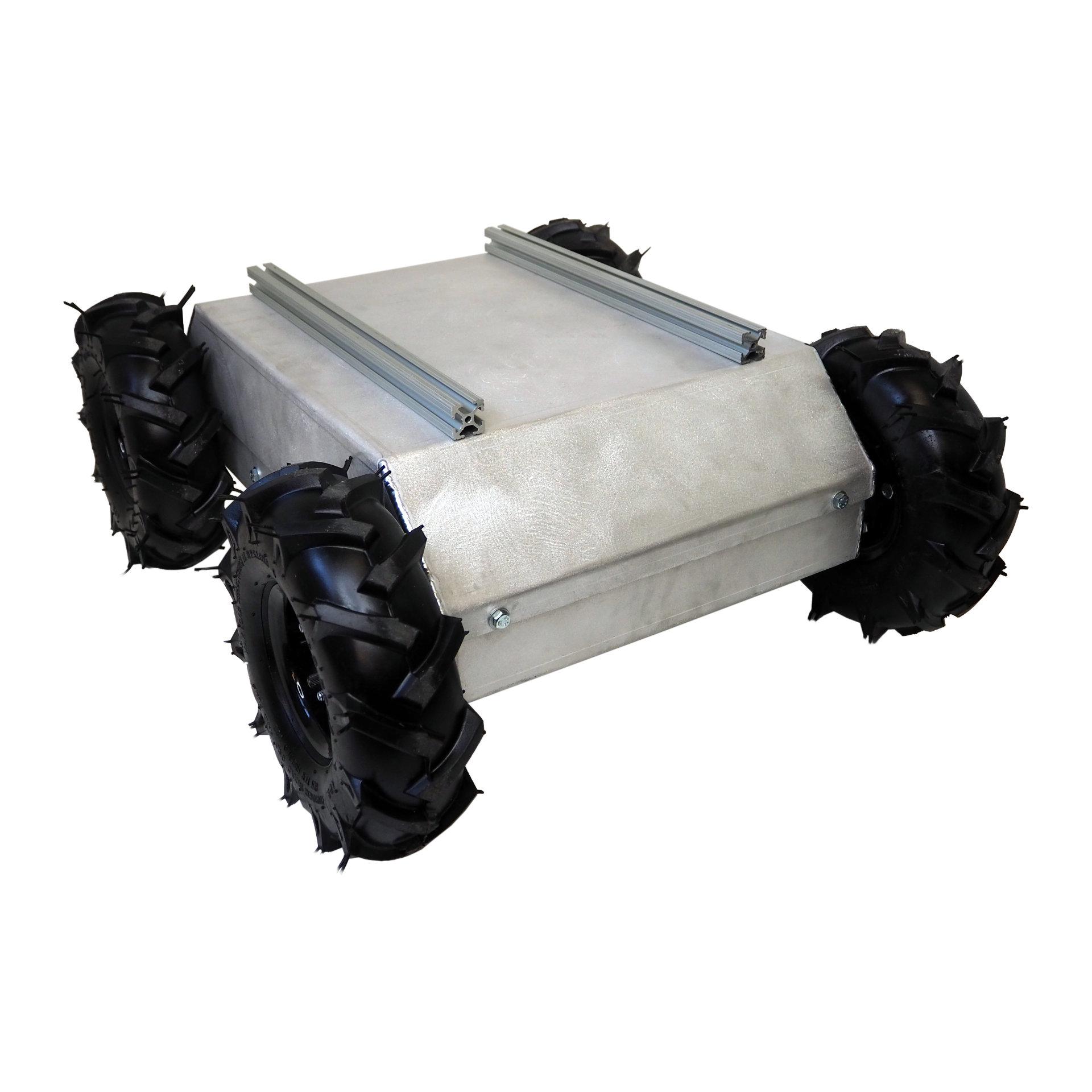

Custom Size All Terrain Robot - Image 2

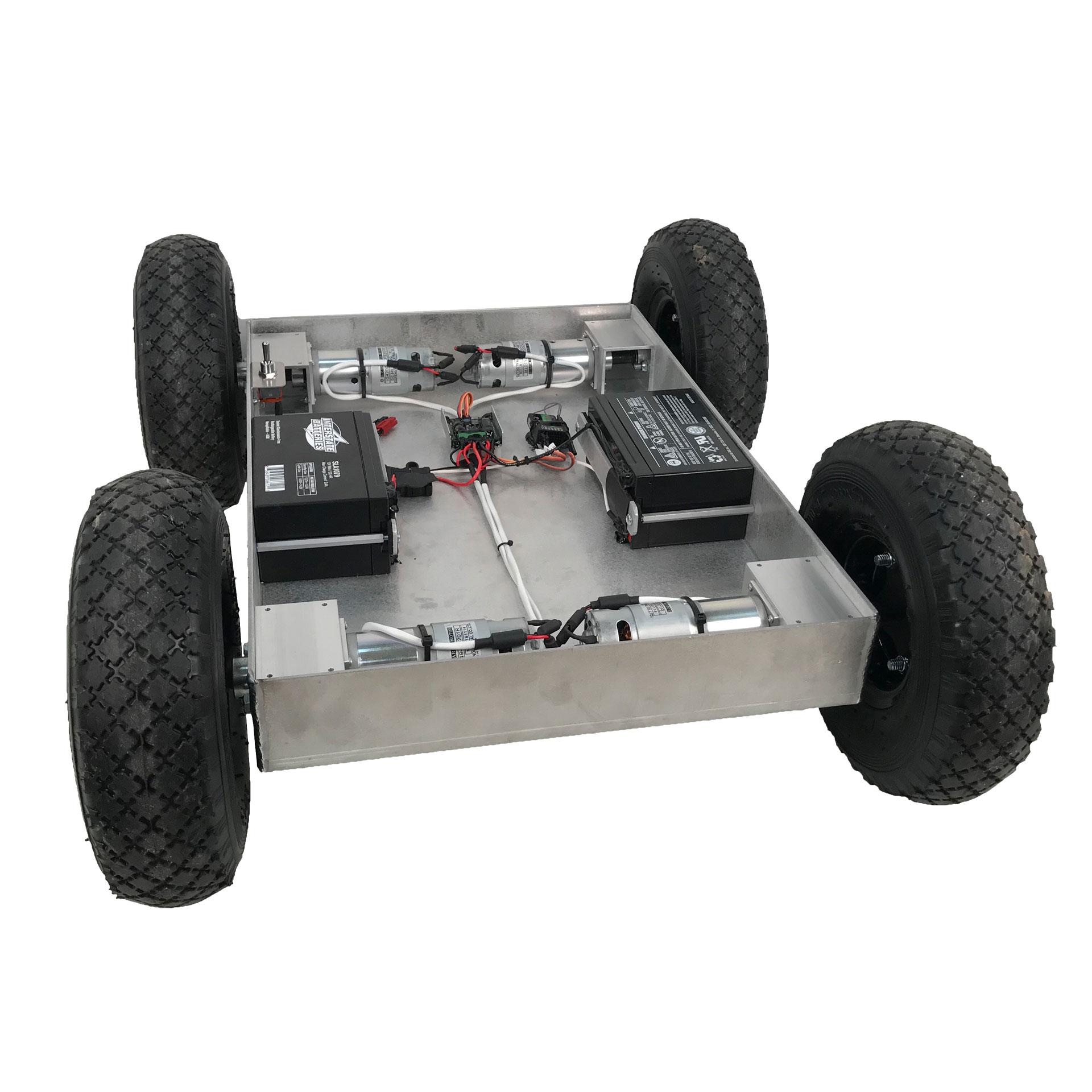

Custom Size All Terrain Robot - Image 3
  1. Configurable - IG42-SB4-T, Custom Size 4WD All Terrain Robot
  2. Custom Size All Terrain Robot - Image 2
  3. Custom Size All Terrain Robot - Image 3

Custom Size All Terrain Robot

  • This Custom Size All Terrain Robot platform allows you to customize the length and width of your chassis, making it a great choice for projects.

$2,429.54

Category

Description

  • This Custom Size All Terrain Robot platform allows you to customize the length and width of your chassis, making it a great choice for projects.
  • Basically As with our standard kits, this custom size platform allows you to build your kit from the ground up!
  • That means you can choose the type of motors, wheels, controllers, batteries, and other components to meet your needs.
  • Initially Custom Size All Terrain Robot is a configurable robot kit with selectable options.
  • The options are pre-selected to reflect our recommended configuration but can be changed to suit your needs.
  • All of our robots are designed and fabricated in North Carolina, USA and are fully supported by SuperDroid Robots, an industry leader in robotics.
  • Certainly Dimensions (LxWxH): 28.0″ x 22.8″ x 10.0″
  • Weight: 40 pounds
  • Axle Mount: Single Bearing (SB) – Axles are mounted directly onto the motor shaft and supported by a single bearing
  • Accordingly Custom Size All Terrain Robot Drive Method: Direct Drive
  • Speed and Payload Chart: 4WD IG42-SB Robots
  • Payload :
  • With default selected options: 20 to 35 pounds depending on use
  • Payload range with available options: 10 to 80 pounds
  • Speed:
  • With default selected options: 319 feet per minute (3.6 mph)
  • Certainly Custom Size All Terrain Robot Top speed range with available options: 123 to 628 feet per minute
  • The standard configuration comes unassembled.
  • Includes the chassis, hardware, and wiring kits.
  • Gear Motors: Four (4) 122 RPM gear motors (one per axle/wheel).
  • Accordingly Wheels: Two (2) Pair of 10 inch pneumatic wheels.
  • Battery System: Two (2) Interstate 12V 8 Ah Lead Acid Battery providing 1-3 hours of operation depending on use.
  • Motor Controller(s): One (1) Sabertooth Dual 12A RC Motor Controller.
  • Initially Control System: One (1) FLYSKY FS-i6 2.4Ghz 6Ch transmitter and receiver.
  • While we recommend the standard configuration, if you would like to customize your robot we offer many options you can choose from at the bottom of the page.
  • The TP-047-042 kit allows for a wide range of customizations based on your needs.
  • We offer a variety of motor controllers, batteries, RC controllers, and encoders so you can configure the robot to meet your requirements.
