Description

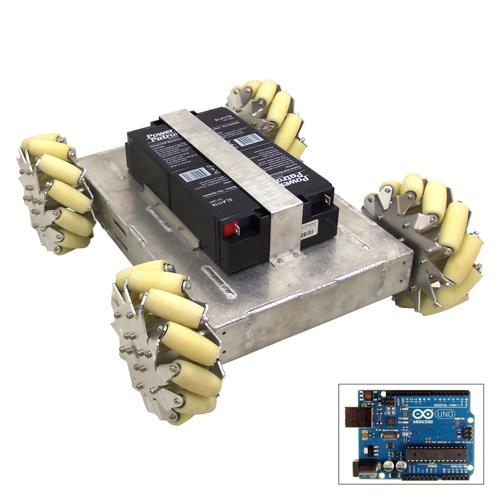

- This is a IG52 DB Configurable Programmable Robot kit with selectable options at the bottom of the page.
- The options are pre-selected to reflect our recommended configuration but can be changed to suit your needs.
- Basically this mecanum wheel Arduino robot platform is designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots.

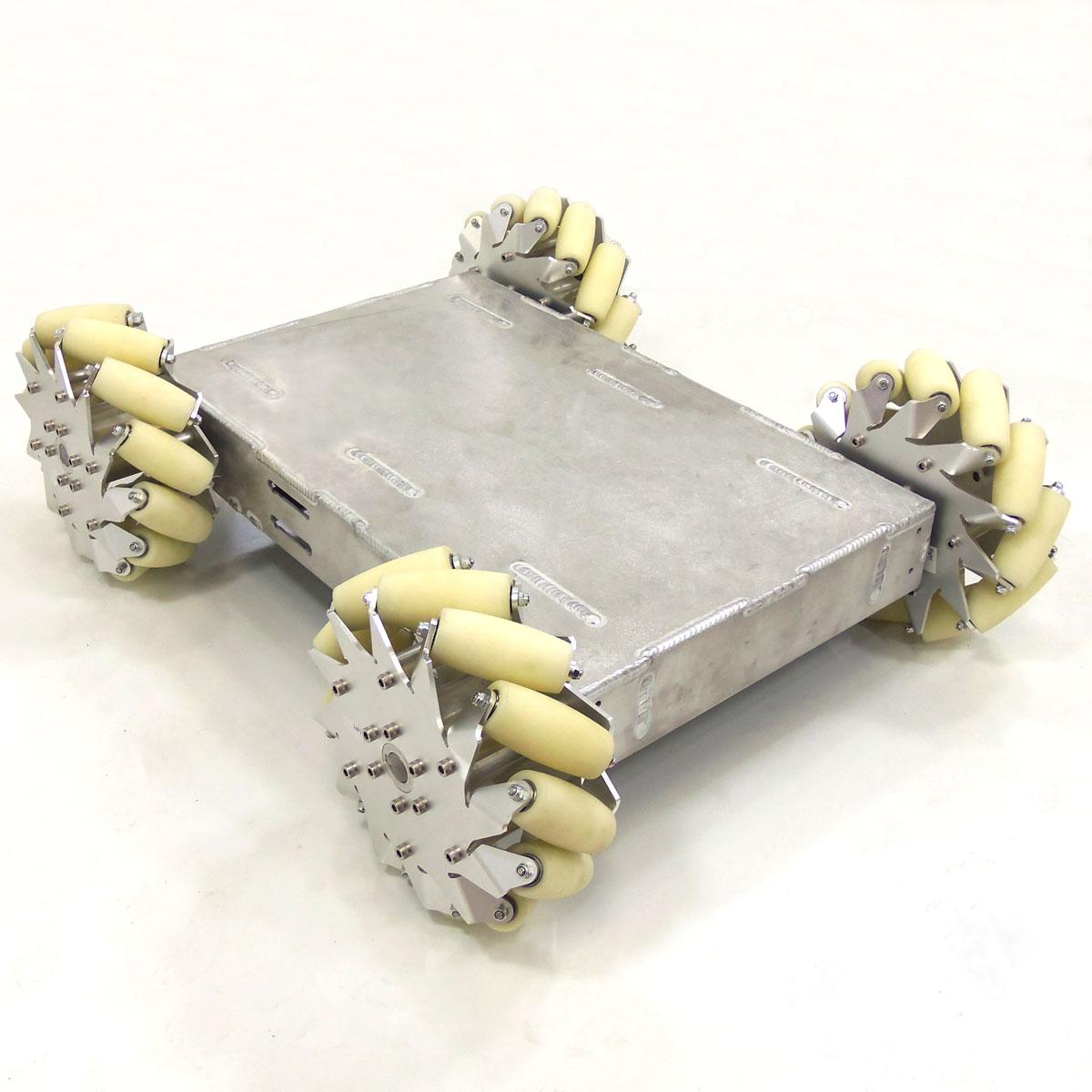

- Probably this robot kit includes the CNC cut 4WD base intended for our IG52 gear motors and Nexus Mecanum wheels or omnidirectional wheels.
- The chassis is a rigid gusseted aluminum frame (1/8″) that is precisely fabricated using state of the art CNC equipment.
- Although Each wheel is supported by two flanged, double-sealed ball bearing for extra support and chain driven.
- Also It is designed for any of our planetary IG52 gear motors with or without encoders.

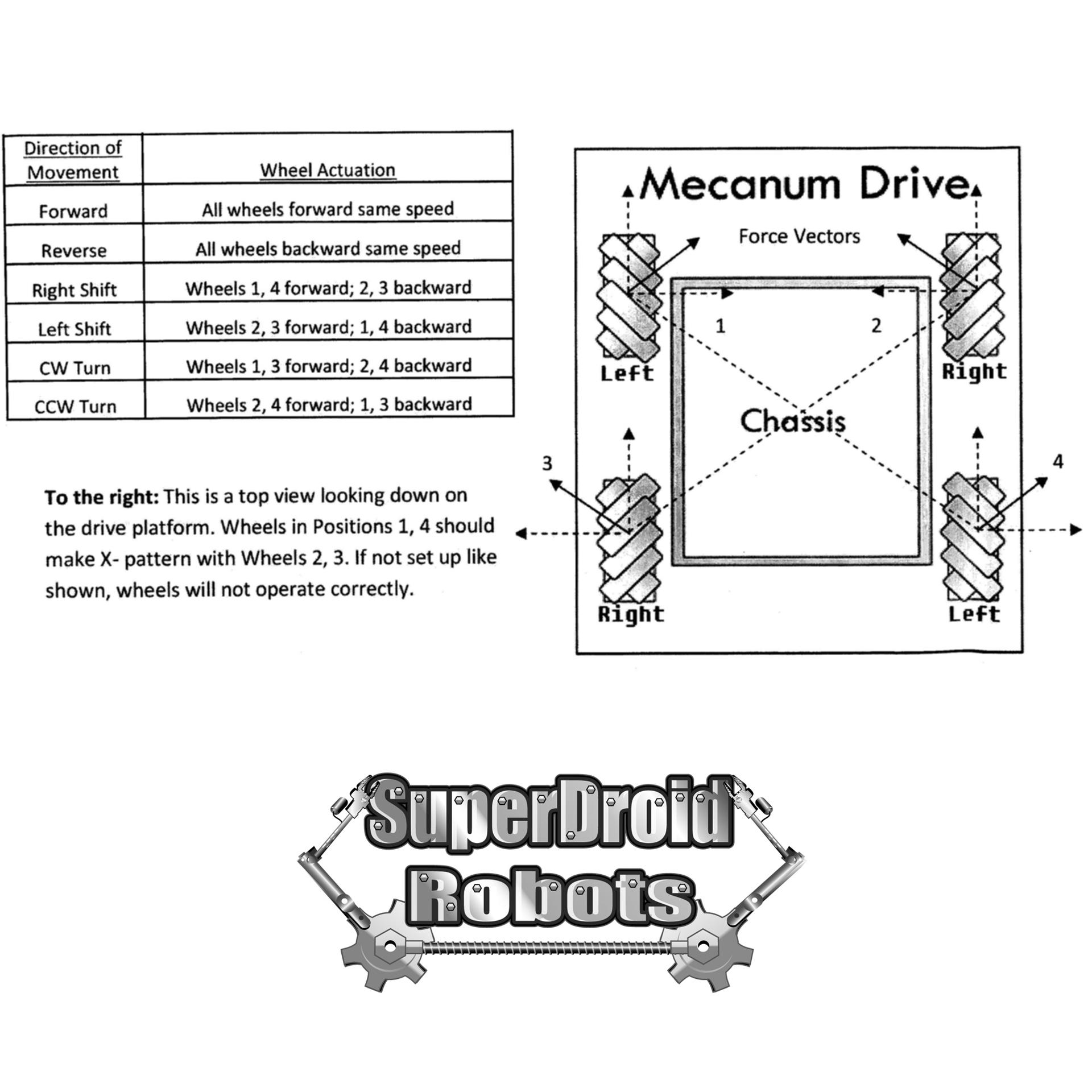

- This platform is also specifically designed for chain driving with Nexus mecanum wheels and hubs (listed in the options below).
- This IG52 DB Configurable Programmable Robot is a vectoring version of the IG52 DB Heavy Duty ATR.
- See our vectoring robot page for more details about our All Terrain Robots.
- If you need this Programmable robot customized beyond the provided options below, Contact us.
- Also this is perfect for the creation of an Autonomous robot.
- Certainly we offer a wide variety of sensors to develop autonomy.
- Afterwards we also offer an RC override option so you can control the IG 52 DB configurable programmable robot with an RC controller.

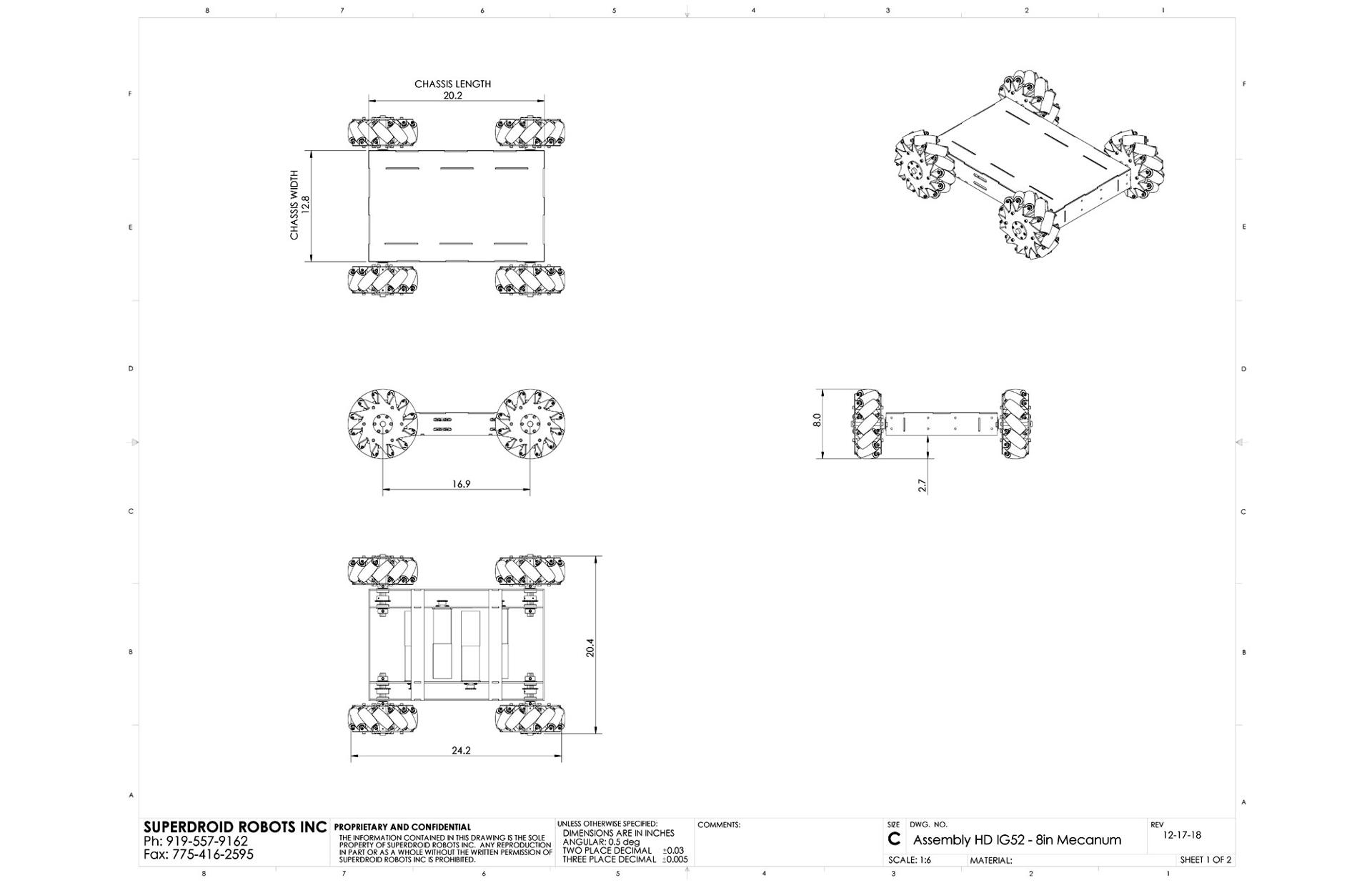

- Dimensions (LxWxH): 24.2″ x 19.7″ x 8″
- Weight: 60 pounds
- Axle Mount: Dual Bearing (DB) – Axles are mounted on two ball sealed ball bearings.

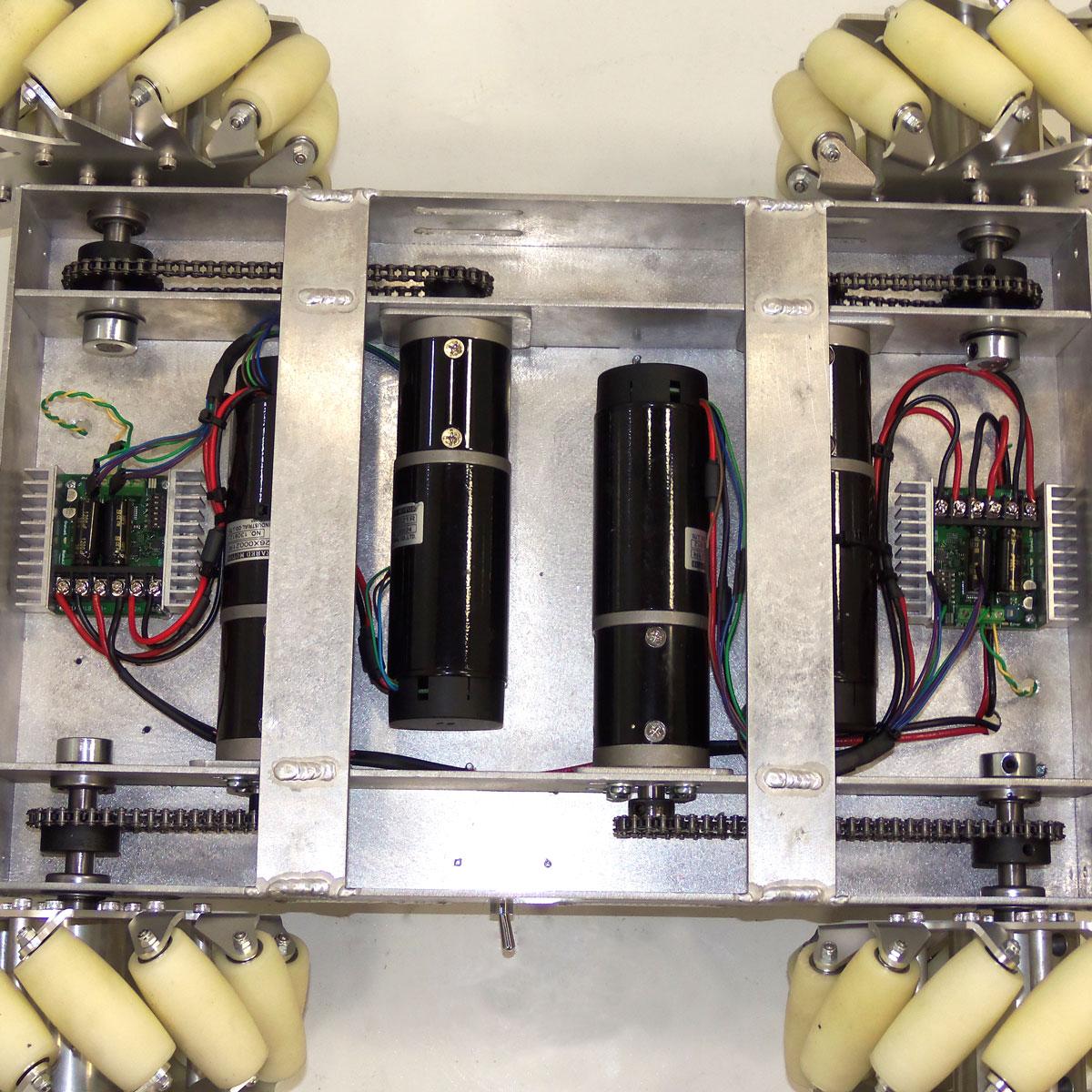

- Drive Method: Chain drive with a 10:15 reduction (gear motors to drive wheels).
- Payload : With default selected options: 200 pounds
- Speed: With default selected options: 200 feet per minute (2.25 mph)
Standard Configuration

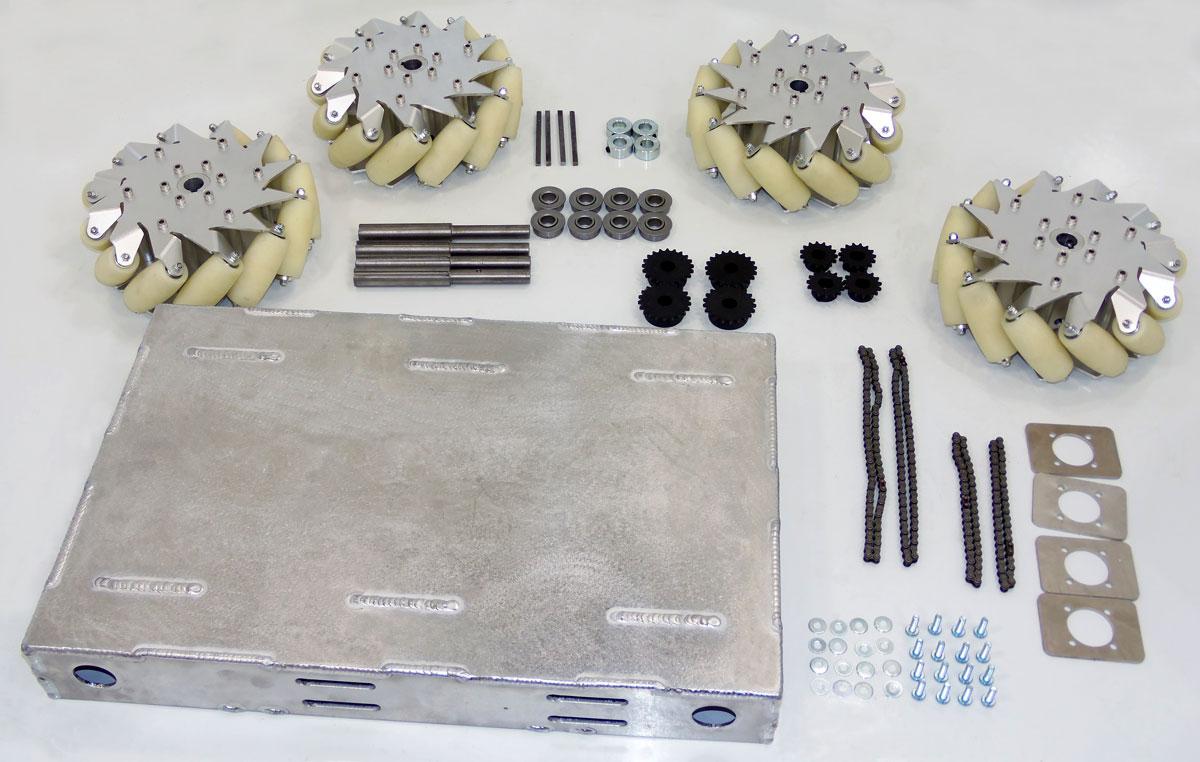

- The standard configuration loadout comes unassembled.
- Includes the chassis, hardware, and wiring kits.
- Gear Motors: Four (4) IG52 136 RPM gear motors (one per axle/wheel).
- Wheels: Set of (4) 8 inch mecanum wheels.
- Battery System: Two (2) Interstate 12V 18 Ah Lead Acid Battery providing 2-5 hours of operation depending on use.
- Motor Controller(s): Two (2) Sabertooth Dual 2×25 RC Motor Controller.
