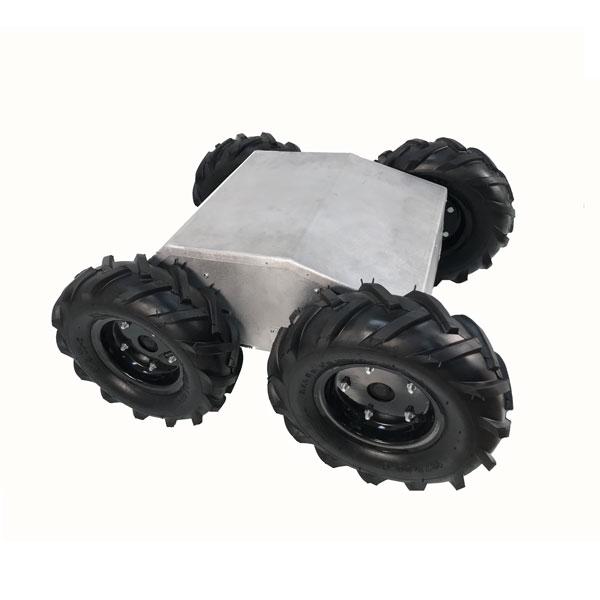

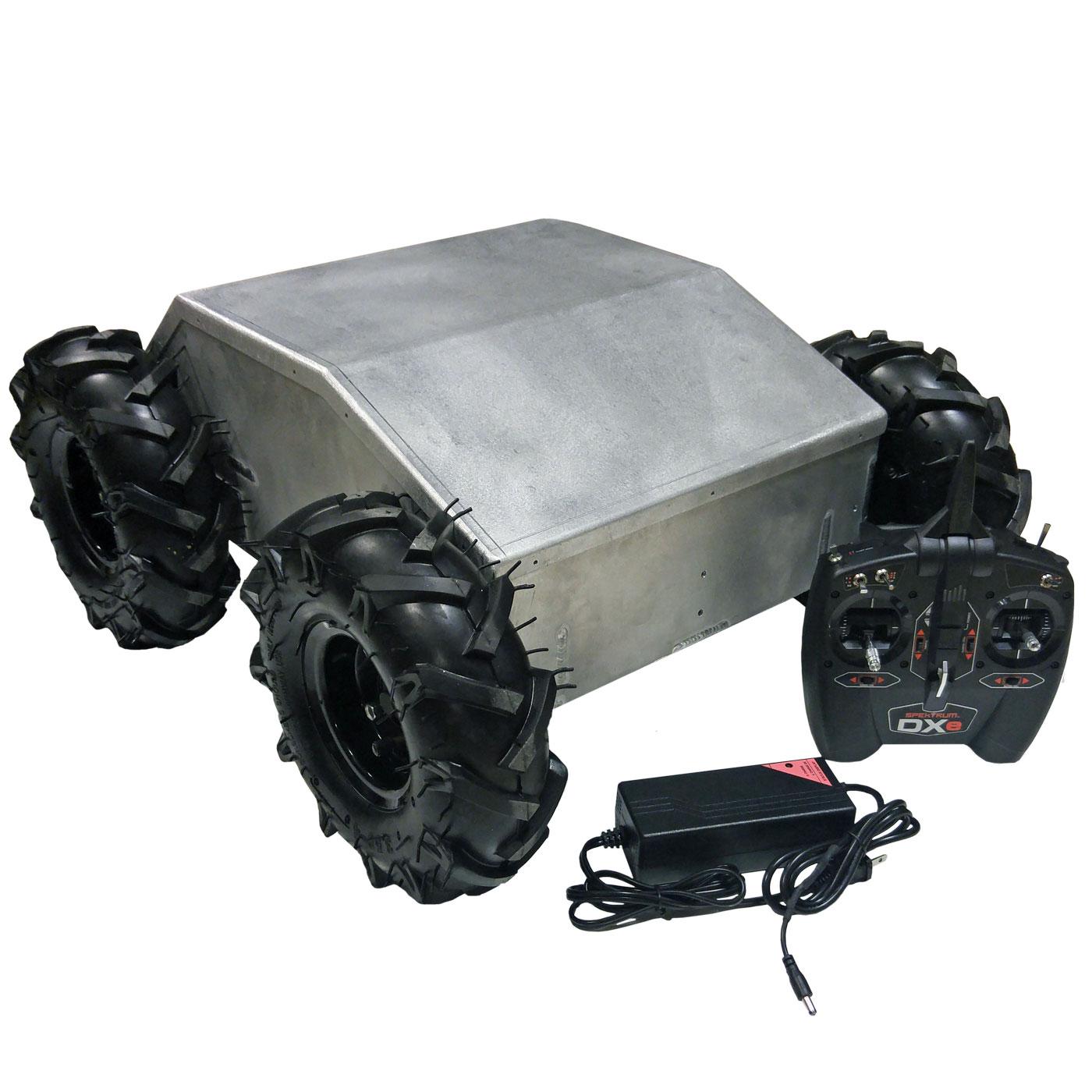

IG52-DB4-E ATR Heavy Duty Enclosed Platform

Description

This IG52-DB4-E ATR Heavy Duty allows you to customize the length and width of your chassis.
Making it a great choice for projects that have specific size requirements!
As with our standard kits, this custom size platform allows you to build your kit from the ground up!
That means you can choose the type of motors, wheels, controllers, batteries, and other components to meet your needs.
IG52-DB4-E ATR Heavy Duty is a configurable robot kit with selectable options.
The options are pre-selected to reflect our recommended configuration but can be changed to suit your needs.
All of our robots are designed and fabricated in North Carolina, USA and are fully supported by SuperDroid Robots.

Gear Motors:

Choose from our selection of different RPM gear motors.
As you go down in RPM, your payload capacity will go up but your speed will go down.
As you go up in RPM, your payload capacity will go down but your speed will go up.
IG52-DB4-E ATR Heavy Duty Wheels: Choose from our selection of wheels.
You can choose from our standard grip pneumatic tires or if more traction is required you can choose our rugged all terrain traction lug tires.
Batteries: We offer a few different battery options but there are two types of batteries that we recommend using with this kit:
Lead Acid and LiFePO₄. The lead acid batteries are much less expensive but are heavier,
Do not provide any internal circuit protection, and can survive anywhere from about 200-1000 charge cycles.
The LiFePO₄ batteries are more expensive but are much lighter,
Have internal circuit breakers to prevent damaging themselves, and can survive about 1000-3000 charge cycles.
IG52-DB4-E ATR Heavy Duty The charge cycle estimates are based on the recommended depth of discharge for each battery cycle.
A lead acid battery is only recommended to be discharged to about 50% of it’s capacity while a
LiFePO₄ battery can be discharged to 100% with no long term affects.

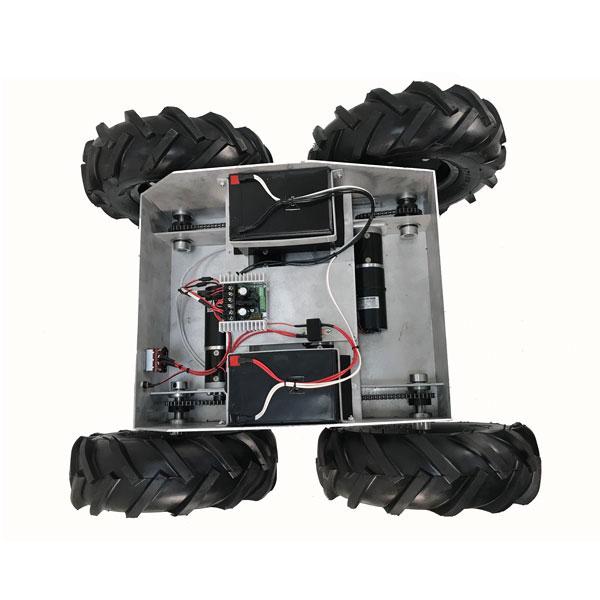

Motor Controllers: Choose from our selection of RoboteQ, Sabertooth, and RoboClaw motor controllers.
In most configurations, a single motor controller is all that is required.
IG52-DB4-E ATR Heavy Duty the left side motors share a channel while the right side motors share the other channel.
We offer the option to double the quantity in case you require encoders on all four motors.
