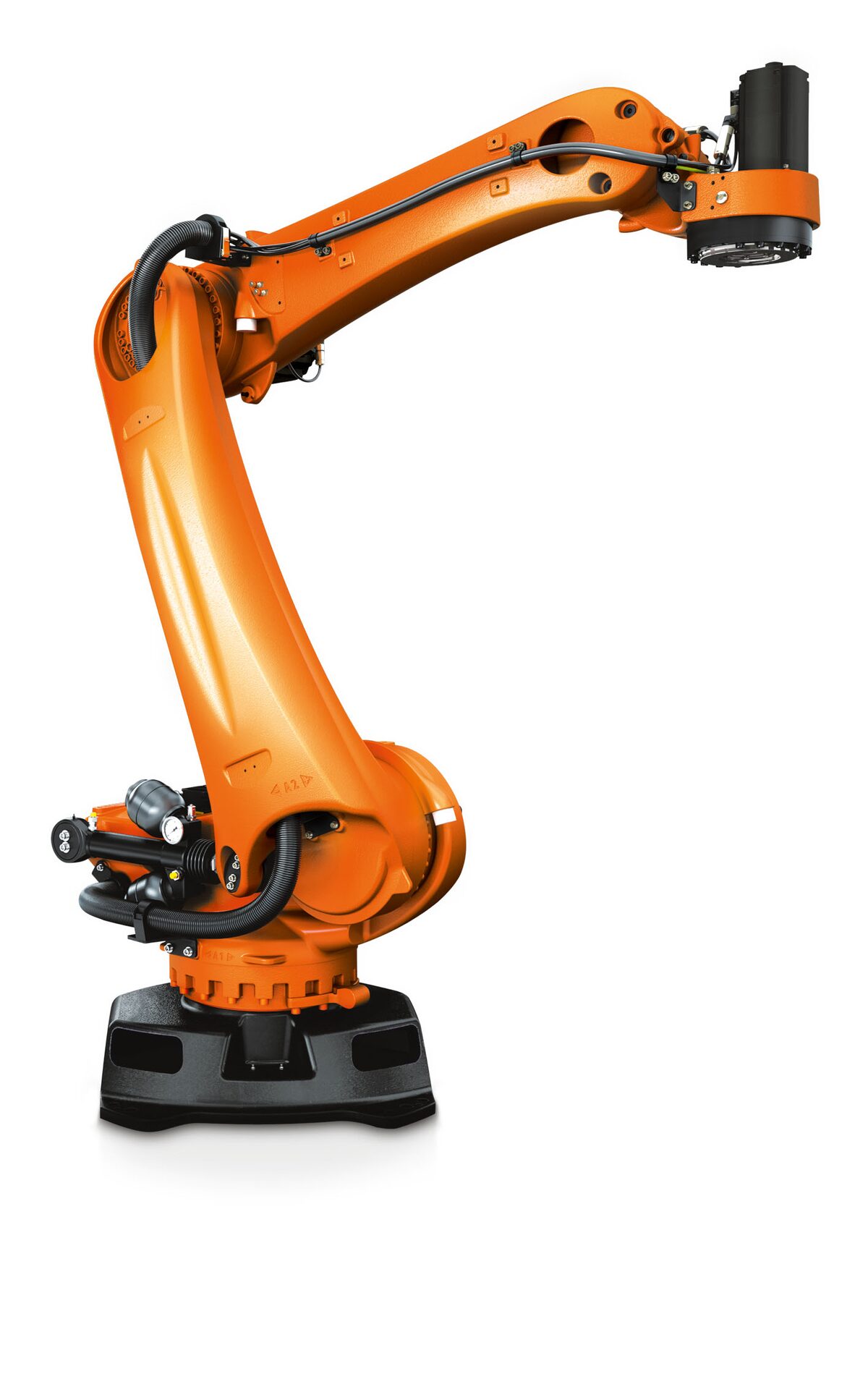

KR 240 R3200 PA

Description

• KUKA KR 240 R3200 PA offers a broad portfolio for the food sector. In addition to the portfolio, KUKA also offers hygienic machine robots (HM) and hygienic delta robots also.
• The world’s broadest robot portfolio for the food industry.
• Customers benefit from the holistic hygiene approach for ensuring food quality.
• And the high reliability of our proven robot families.

• 12 robots with hygienic oil (NSF H1 lubrication) suitable for applications with secondary food

  • Small to high payload including palletizing robots

  • Widest range of payload up to 210 kg

  • Widest reach coverage up to 3100 mm

Features:

• KUKA KR240 R3200 PA offers a broad portfolio for the food sector. In addition to the  portfolio, KUKA also offers hygienic machine robots (HM) and hygienic delta robots. HM machines are suitable for applications in primary food production. Thanks to the varied robot portfolio, KUKA can cover entire production lines in the food sector, including deep-freeze applications.

• The KUKA  portfolio is based on service-proven industrial robot families.

• All  robots have protection rating IP65/67 (inline wrist)

• All KUKA hardware and software options are suitable.

• Maintenance intervals identical to those of standard KUKA robots

• Hygienic lubrication in all axes and even in energy supplies and cable set

• Thanks to the holistic usage of NSF H1 lubrication KUKA KR 240 R3200 PA portfolio fulfills the increasing food safety and hygiene requirements

• Avoidance of potential contamination by chemical/mineral lubricants

• Leads to easier maintenance – reduced risk of using wrong oil, supports food safety requirements

• Special varnish of robot creates a smooth surface, which is easy to clean, dirt repellent and robust to mechanic damage.

• Bright color supports clean appearance for food production and allows an easy detection of any contamination

• Global Customer Service is ready

Specifications:

• Mounting position
  Floor, Ceiling, Wall, Desired angle
  Pose repeatability (ISO 9283)

  0.04 mm
  Controller

  KR C5, KR C5 micro
  Number of axes

  6
  Ambient temperature during operation

  0 °C to 55 °C (273 K to 328 K)
  Ambient temperature during stor./transp.

  -40 °C to 60 °C (233 K to 333 K)
  Protection rating (IEC 60529)

  IP65
  Prot. rating, in-line wrist (IEC 60529)

  IP67
  Cleanroom class (ISO 14644-1)

  Class 5 at 40% override, Class 5 at 80% override
