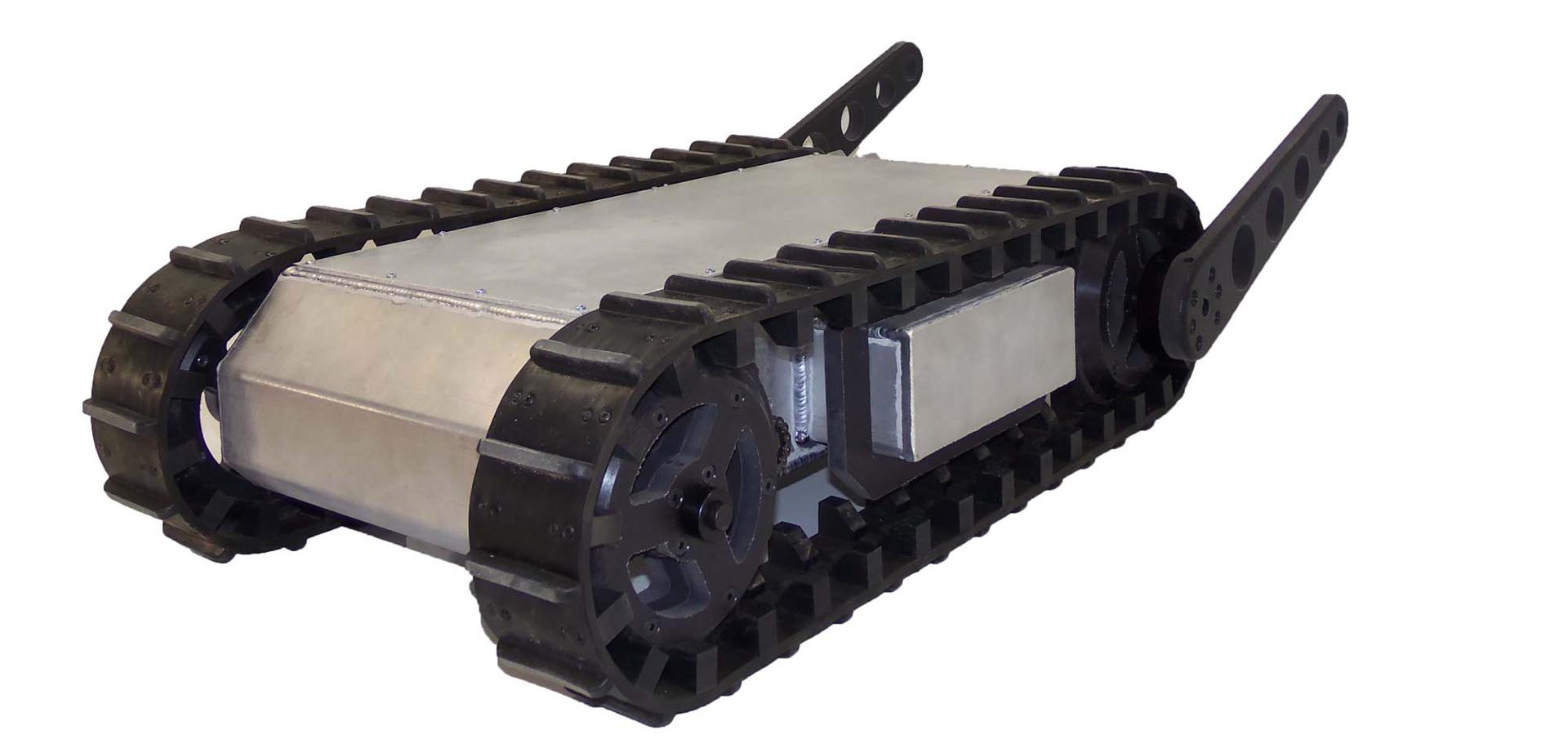

LT2-F Tracked ATR Robot Platform

Description

• Basically This is our second generation of the LT2-F Tracked ATR Robot Platform robot.
• It is the same chassis that we offer with our tactical LT2-F robot.
• The LT2-F treaded robot is lighter weight than the HD2 Treaded robot.

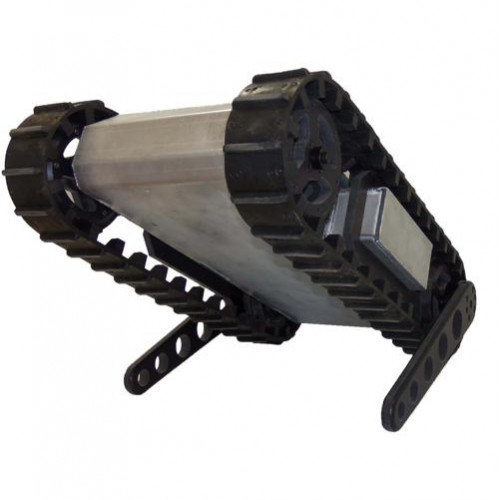

• This package is the same as the LT2 Treaded Robot, but has the addition of a flipper/stabilizer arm on it allowing it to climb and descend virtually anything.
• Certainly Robot is an affordable treaded robot that can be easily transported (weighing about 48 lbs) .
• Initially Small and can handle most terrains with its aggressive all-terrain treads. Several different motors, battery options,
• Motor controllers can be selected with this robot.
• The LT2-F Tracked ATR Robot Platform robot is a lightweight tough robot that can go over and under many obstacles.
• The treads are driven by powerful IG52 gear motors with #25 chain with a 1:2 reduction to the ~ 7 inch front wheels.
• Accordingly The robot axles are solid high strength steel so they will not bend when the robot is dropped.
• The flipper arms are driven with a powerful IG52 gear motor.
• We have designed this robot to be as simple as possible without compromising its strength, durability, or functionality.
• Initially The LT2-F Tracked ATR Robot Platform tactical version of this robot has been NIST tested and qualified.
• Certainly This chassis also uses our LT2 track and wheels, which will not derail under any circumstance.
• See our LT2/LT2-F Bloodhound for a tactical solution using this robot chassis.

Standard Configuration:

• The standard configuration loadout comes unassembled.
• Accordingly Includes the chassis, hardware, and wiring kits.
• Gear Motors: Two (2) IG52 285 RPM Gear Motors (one per axle/wheel).
• Flipper Arm Gear Motor: One (1) IG52 44 RPM Gear Motor.
• Tracks: Two (2) LT2 Pair of Tracks and Wheel Set
• Battery System: Two (2) Interstate 12V 8 Ah Lead Acid Battery providing 1-4 hours of operation depending on use.
• LT2-F Tracked ATR Robot Platform Motor Controller(s): One (1) Sabertooth Dual 25A Motor Driver.
• Basically Flipper Arm Motor Controller(s): One (1) SyRen 10A Regenerative Motor Driver.
