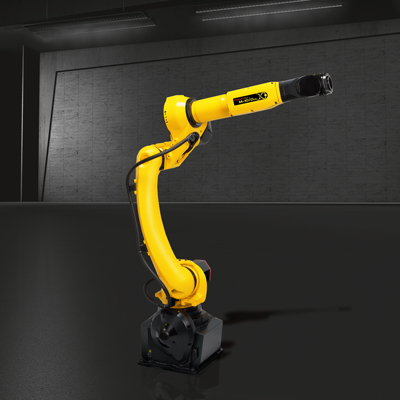

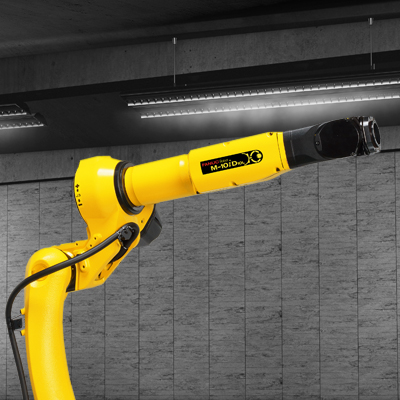

M-10iD/10L
The new long arm model of the M-10 series features an outstanding axes speed and ultimate precision within its class. Made specifically for narrow installations, this highly versatile robot can work on relative large parts thanks to its large horizontal stroke and can also be installed upside down or angle mounted.
Description

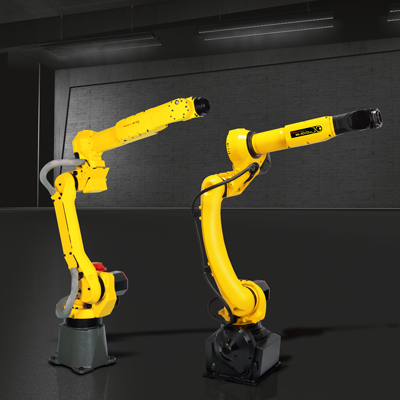

- M-10iD/10L is the second model of the new M-10iD series, succeeding the well-known and highly rated predecessor M-10iA/7L. The payload increases from 7kg to 10kg becoming one of the best references in its class including hollow wrist moments and inertias.
- Fully integrated hosepack and cable management design where the cables are lead through the robot’s hollow arm, wrist and body.
- Diminished cycle time – higher productivity owing to the M-10’s very rigid hollow arm and advanced servo technology for increased acceleration performance.
- R-30iB Plus controller for FANUC robots
-more flexible appearance
-improved user interface with the new iHMI
-setup guides for programming
-increased memory (DRAM 1GB, FROM 256 MB) for an increased higher productivity - Get even more out of your industrial robot with tailor-made FANUC accessories and software options such as the SpotTool, iRVision or Dual Check Safety (DCS) software. Make your robot smarter and capable of self-improving productivity using the unique Learning Vibration Control.
