M-20iB/35S

M-20iB/35S

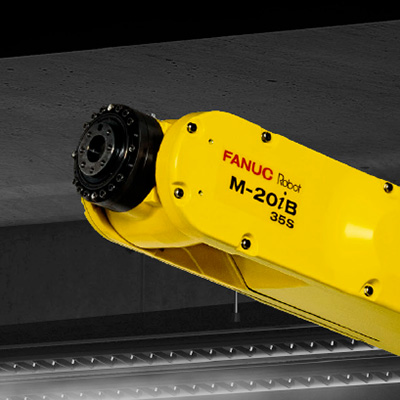

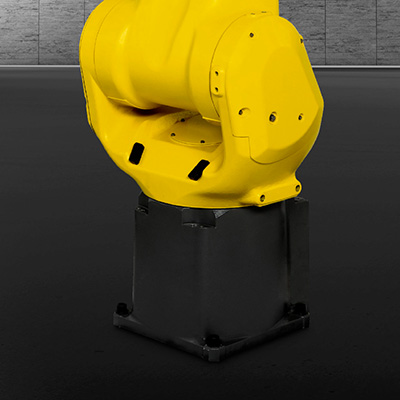

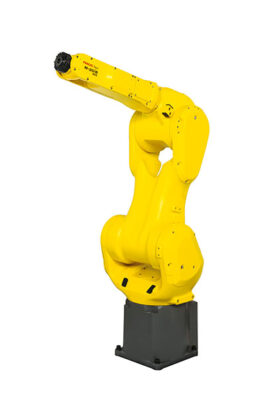

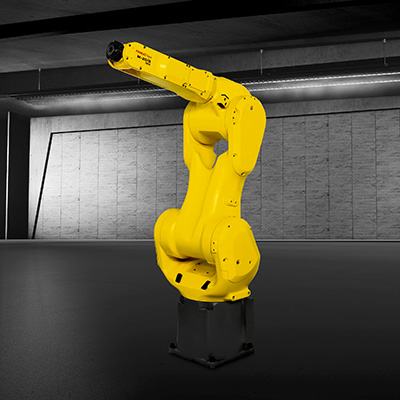

Equipped with a lightweight upper arm and inline wrist, and weighing just 205 kg, the M-20iB/35S delivers high inertia and lifts a full 35 kg. This, combined with its compact design and narrow arm, makes it ideally suited to numerous highpayload machine tending and loading applications in a small footprint.

Category Collaborative Robots (Cobots)

Description

The M-20iB/35S boasts an incredible strength-to-weight ratio and has been designed to achieve faster cycles and increased throughput on a range of applications.
No exposed cables and motors for minimal interference and maximum reliability. Connectors don’t protrude, and the cables are shielded along the arm.
Fully able to cope with the spray, moisture and dirt associated with many machining processes, the M-20iB/35S comes fully encapsulated to IP67 standard.
R-30iB Plus controller for FANUC robots
-more flexible appearance
-improved user interface with the new iHMI
-setup guides for programming
-increased memory (DRAM 1GB, FROM 256 MB) for an increased higher productivity
