MLT-42-F Tracked Robot Platform

Description

• The MLT-42-F Tracked Robot Platform is designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots, an industry leader in robotics.
• Basically It is a smaller version of our LT2 and HD2 tanks but built with the same high level of quality, strength, power, etc.
• MLT-42-F Tracked Robot Platform is not a plastic imported robot that will disappoint you.
• It performs exceptionally well for its size and is intended as a small maneuverable customizable tracked robot platform.

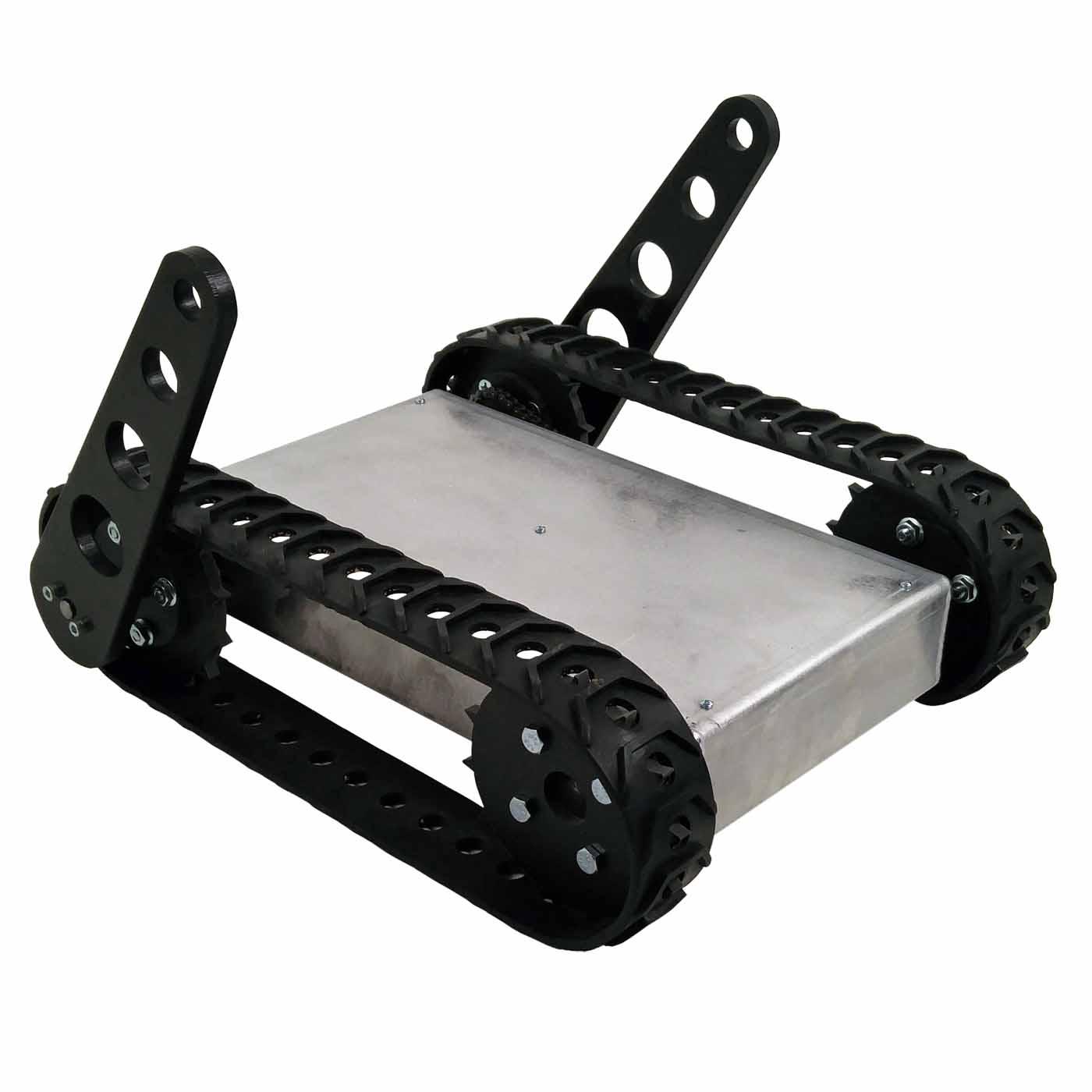

• Certainly The MLT-42-F comes with motorized flipper arms that allow the robot to climb obstacles and flip itself over if upside down.
• Accordingly The MLT-42-F Tracked Robot Platform is invertible meaning it can drive upside down.
• The main body of the robot is a welded aluminum chassis and is driven by the wheel and track set.
• Initially Each track is driven by a planetary gear motor delivering smooth reliable power.
• The drive wheels are mounted directly to the motor output shaft and an idler wheel is bolted to the chassis.
• The molded 4 ply seamless tracks offer exceptional strength and quality.
• The motor and track combination allow this robot to go over most terrain, yet its size makes it very maneuverable indoors.
• The robot uses differential steering (movement is based on two separately driven wheels placed on either side of the robot body.
• MLT-42-F Tracked Robot Platform can thus change its direction by varying the relative rate of rotation of its tracks).
• The kit provides you with what you need to make a compact affordable All-Terrain tracked robot.

Standard Configuration:

• Certainly The standard configuration loadout comes fully assembled.
• Includes the chassis, hardware, and wiring kits.
• Gear Motors: Two (2) IG42 122 RPM Right Angle Gear Motors with Encoders.
• Initially MLT-42-F Tracked Robot Platform Tracks: One (1) MLT-42 Pair of Molded Spliceless Tracks and Wheels Set.
• Flipper Arms: MLT-42 flipper arm pair with all required bearings and hardware.
• Accordingly Battery System: Two(2) 11.1V 2200 mAh Lipo Batteries providing roughly 2 hours of operation.
• Basically Motor Controller(s): One (1) Sabertooth Dual 12A RC Motor Controller.
• Control System: One (1) FLYSKY FS-i6 2.4Ghz 6Ch transmitter and receiver.
