Description

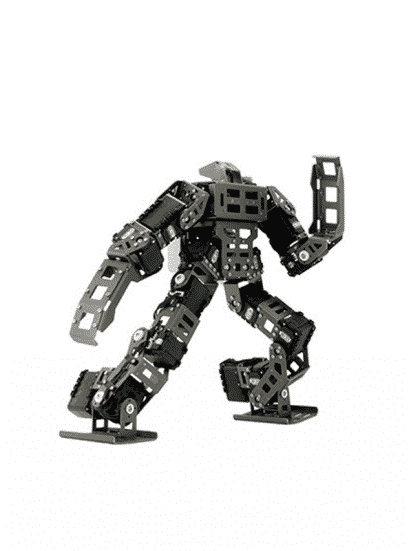

• The BIOLOID GP HUMANOID ROBOT is a top notch humanoid optimized for various competitions.
• With high performance actuator AX-18A and ultra lighted high strength of aluminum frames.
• It will complete various mission given at competitions.
• Enjoy various robot sports with the BIOLOID GP armed with versatile performances and powerful mobility.

Features:

• BIOLOID GP HUMANOID ROBOT kit, the strongest, high performance of robot for competition participants.
• Top-notch humanoid armed with high performance actuator DYNAMIXEL AX-18A
• Ultra-light weight and high strength of aluminum frames
• Powerful mobility including a direction switch while moving and fast walking
• Basic humanoid battle and soccer motions are provided
• Can adjust posture while walking with gyro sensor
• Includes a gripper set for mission completion
• Includes optional frames for waist twisting
• BIOLOID GP HUMANOID ROBOT Includes wireless remote controller (IR-default, Zigbee/Bluetooth-optional)
• Includes a Roboplus, an upgraded powerful S/W programming tool
• Digital packet communication and simple daisy chain connection

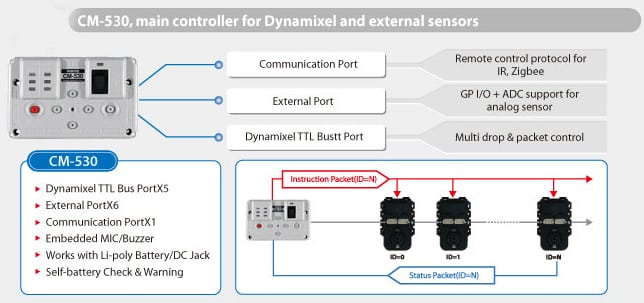

Main Controller for External Sensors:

• Dynamixel TTL bus port X5
• External Port X5
• Communication Port X1
• Embedded MIC/Buzzer
• Works with Li-poly battery/DC jack
• Self-battery check and warning

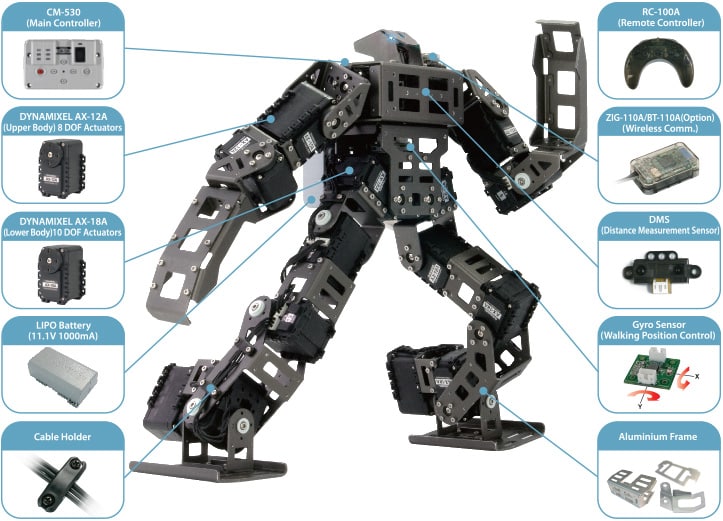

• CM-530 (Main Controller-ARM Cortex(32bit) X 1
• AX-12A (Robot Exclusive Actuator, Dynamixel) X 8
• AX-18A (Robot Exclusive Actuator, Dynamixel) X 10
• Gyro Sensor (2 Axis)  X 1
• DMS X 1
• RC-100A (Remote Controller) X 1
• Rechargeable Battery (11V, Li-Po, 1000mA/PCM) X 1
• Balance Battery Charger X 1
• Humanoid Aluminum frame full set
• Gripper frame set
• Quick start (16 DOF humanoid assembly manual included)
• Wrench, Screw Driver, Wrench Bolt, Cable Holder
• RobotPlus Software CD (WindowsXP/2000/Vista 32bit)
• Aluminum Trunk
