SCT-32-W

Description

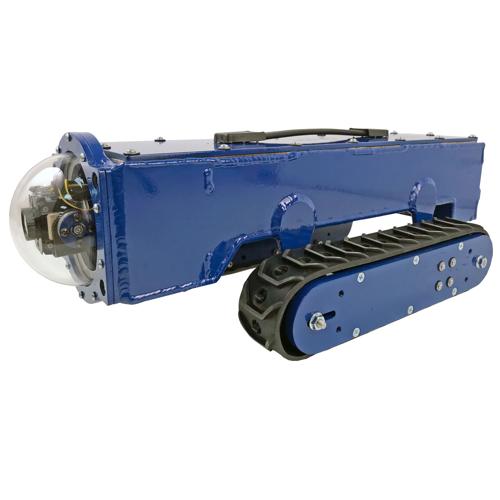

• SCT-32-W  this custom tracked robot is our easy to use solution for inspecting pipes, culverts, etc with a 10″ inner diameter or larger.
• Basically The Treaded Waterproof Pipe and Duct Inspection Robot is controlled with an enclosed case remote.
• The image is displayed on the touchscreen display.
• The mobile robot is programmed and fully assembled complete with remote and charger.
• SCT-32-W No additional equipment is needed to get started!

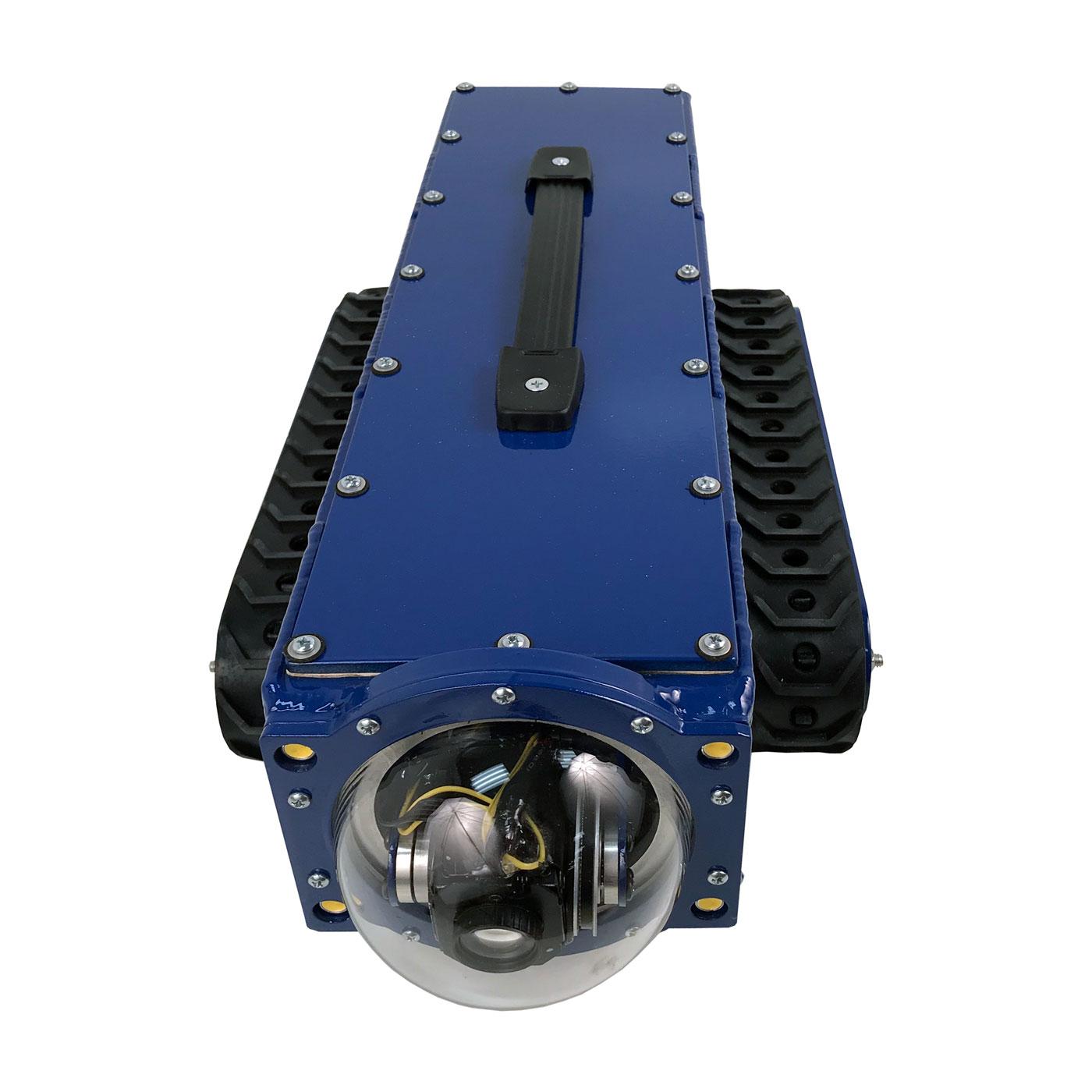

• The robot has a PTZ dome camera mounted on the front, so you can see where you are going and inspect everything around the robot.
• Certainly The pan goes 360 degrees and the tilt is 0 to +90 degrees.
• The camera has a 10X optical zoom.
• A second fixed camera is provided that faces in the rear to check on the tether and back out of the pipe or culvert.
• SCT-32-W All the camera functions are controlled from the remote as you stream the video.

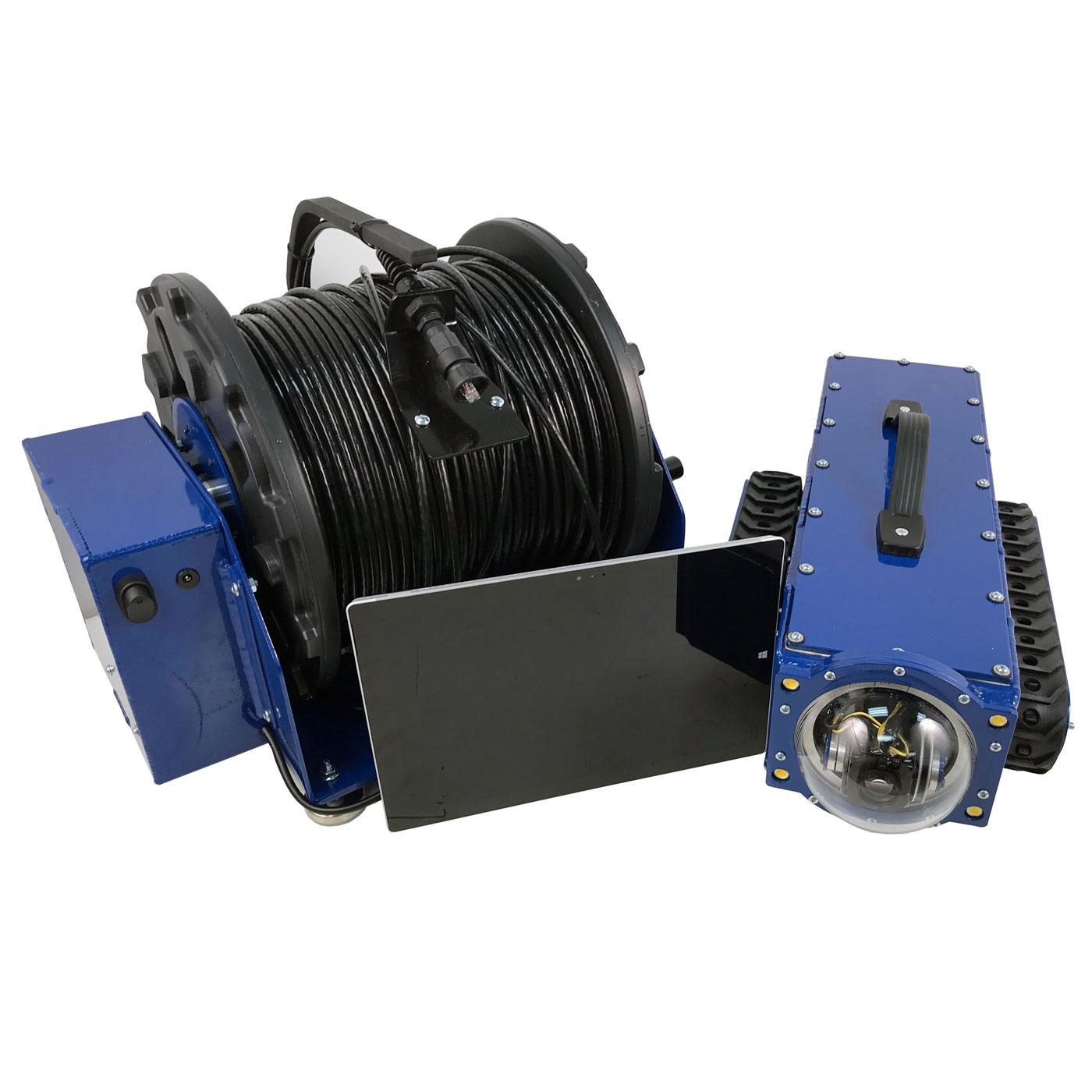

• The robot comes with a 500ft tether with cable spool for easy deployment of the robot and use the hand crank.

LED:

• LED lights are also included on the front and back of the robot to illuminate whatever the camera is facing.
• Accordingly The lights can be remotely turned on and off using the controller.
• The robot itself is extremely rugged and well-built.
• SCT-32-W The tracks are molded without a splice, axle mounted.
• Direct driven by powerful right-angle 32mm gear motors.
• The chassis is rugged, welded together and made from aluminum that is cut using a CNC Plasma table.
• The tracks and drive motors are in individual self-contained assemblies.
• This design allows the robot to have two different track configurations.
• Basically dOne configuration is for narrow pipes (as small as 10″ ID).
• The other is for larger pipes so that the robot has more stability and the camera can sit up higher in the pipe.
• SCT-32-W Everything is included and configured.

Controller:

• Connect the robot and controller via the tether, turn it on, and drive the waterproof pipe inspection robot with the controller while watching live video streaming.
• The controller program can be used to record the video feed.
